Build Guide - Panel Wiring
Hardware Bill Of Materials

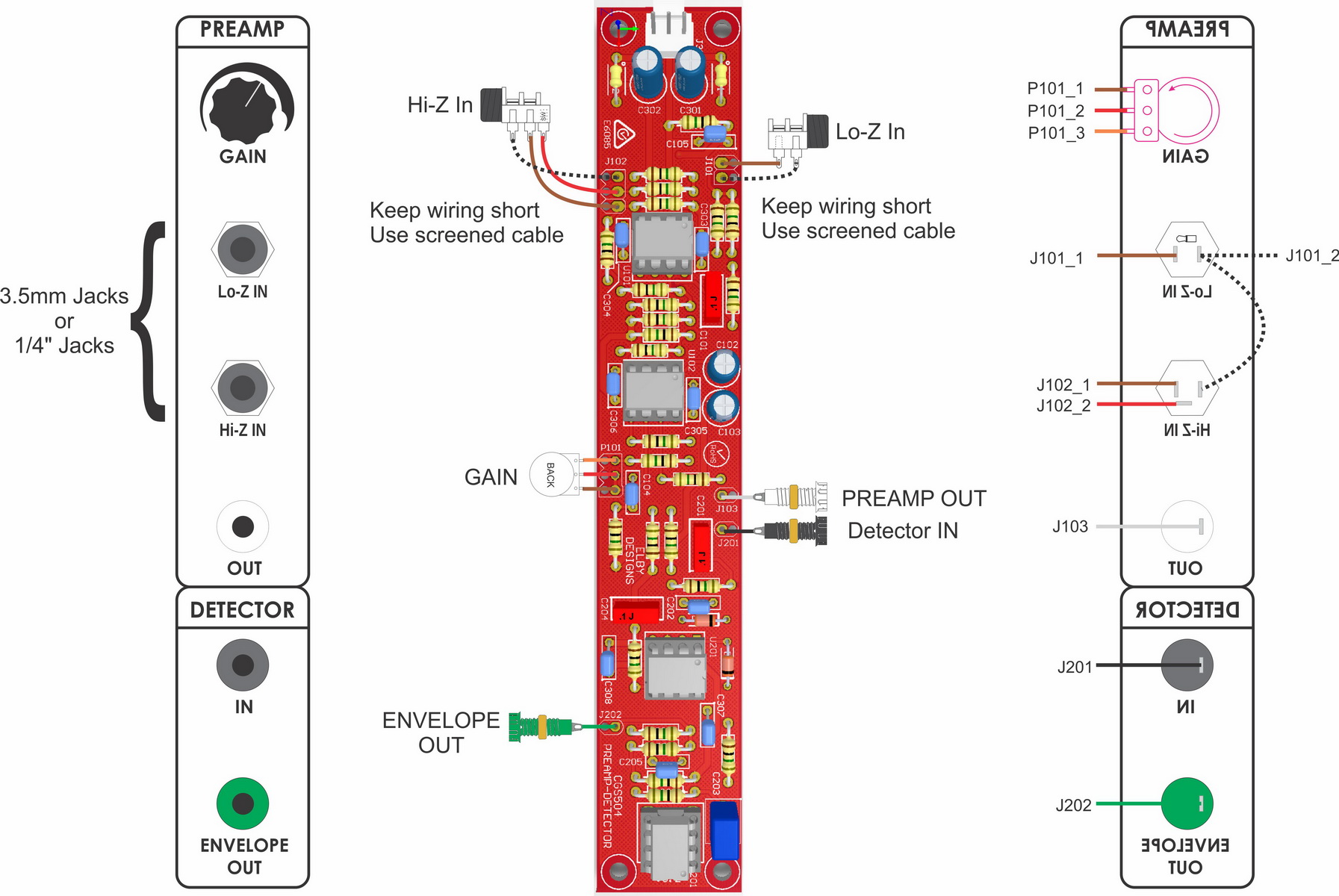

The CGS504 is intended for connecting outside world equipment to your synth and so we recommend the use of 3.5mm or 1/4" jacks for J101 & J102. J102 should have a switching contact.
