CGS512 PCB

Constructors should refer to the Component Overlays along with,
the PCB Bill of Materials for the current value of all components, and
the General Construction Notes for general PCB assembly guidelines.

• Fit all components to the boards following normal assembly guidelines

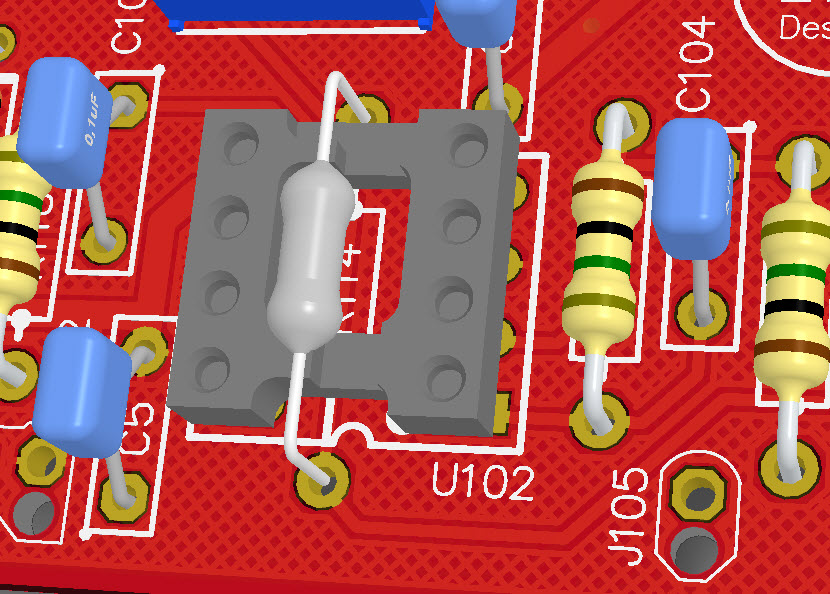

• Mount the TEMPCO R114 over the 8-pin DIP IC socket for U102. When fitting the IC you can add a small bead of thermal compound to the TEMPCO to provide contact with the underside of the IC.
