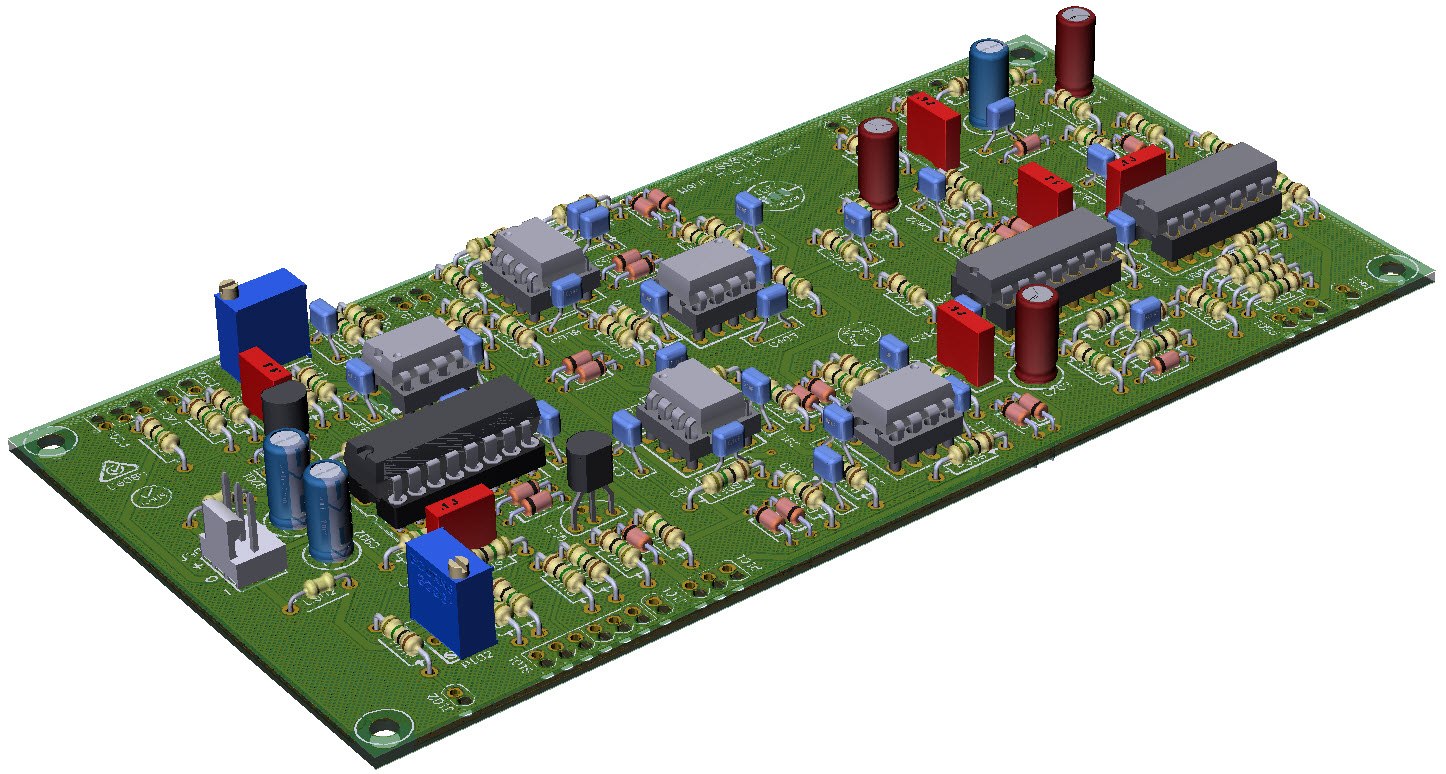

3D Model	Overlay	Plan View

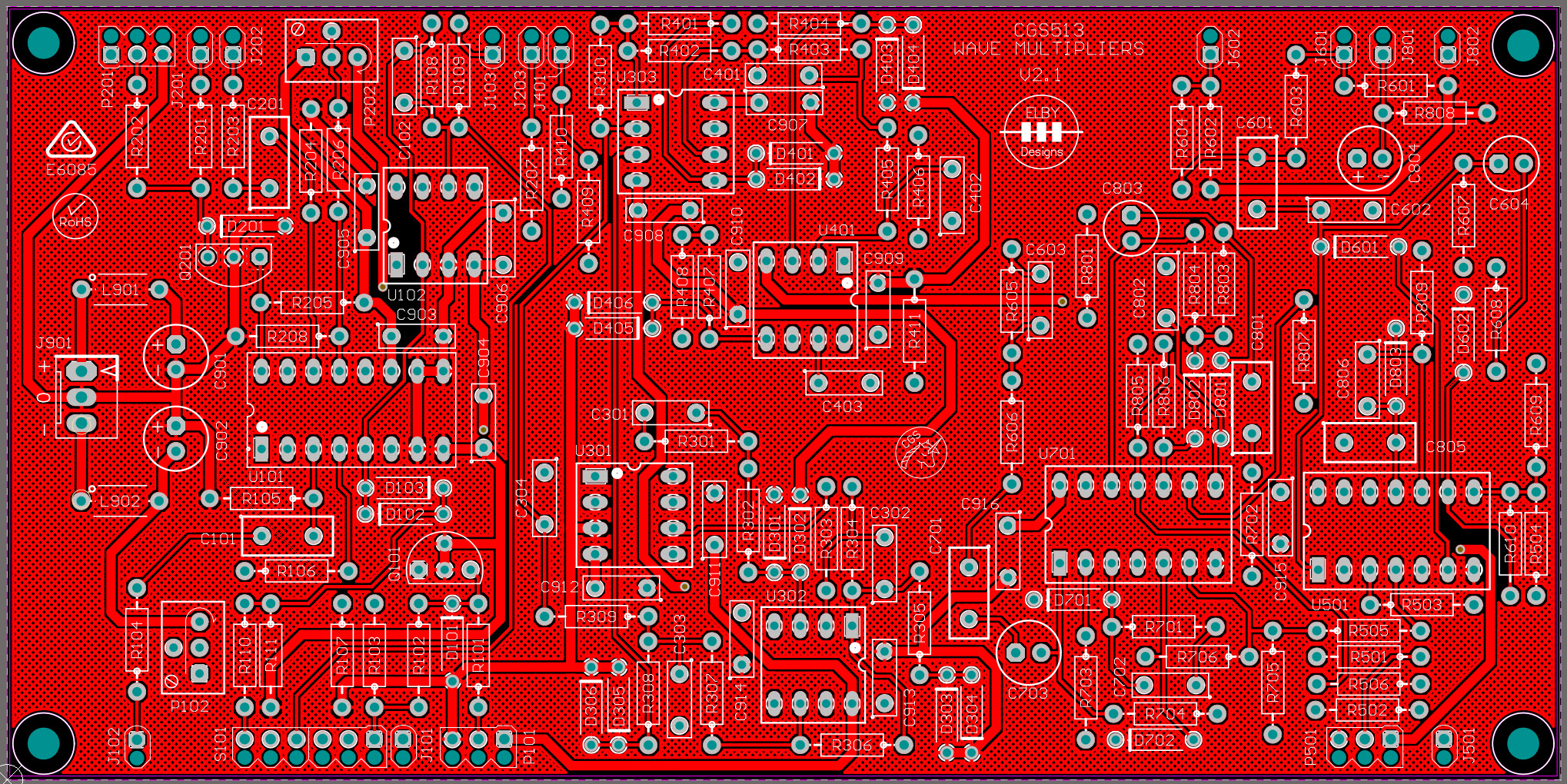

CGS513 PCB

Constructors should refer to the Component Overlays along with,
the PCB Bill of Materials for the current value of all components, and
the General Construction Notes for general PCB assembly guidelines.

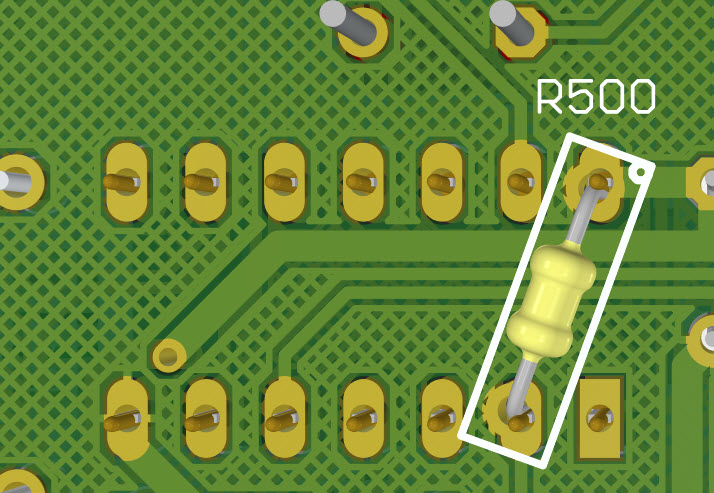

Mount R500 on the underside of the PCB between pins U501_2 and U501_16.
