- Select [AUDIO]
- Set [FREQUENCY] to maximum
- Set [RESONANCE] to '5'
- Set [CV POLARITY] to '0'
- Set [INPUT] to maximum
- Patch a 12Hz 5VDC p-p square wave in to [INPUT]
- Monitor the [BANDPASS] output
- Increase [RESONANCE] until the filter starts to ring - approximately '9'
- Adjust p101 for a frequency of 19kHz. You may need to slightly increase the [RESONANCE] to maximize the duration of the ringing waveform
![](cgs577-pulse.jpg)

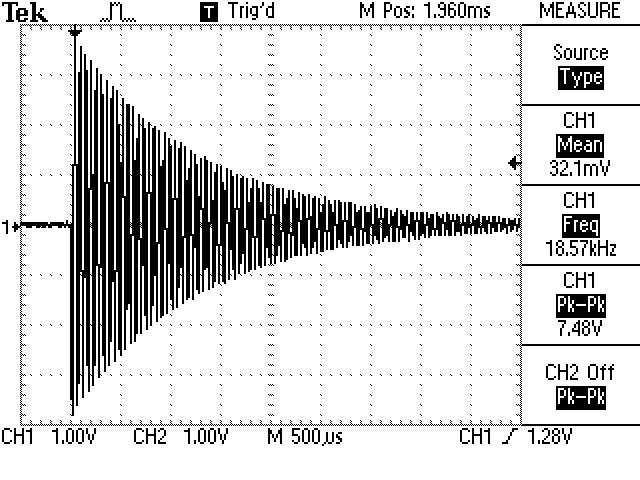

Step 8 - CGS577 Ringing
![](cgs577-sine.jpg)
Step 9 - Tuning to ~19kHz |
|
