Build Guide - PCB Assembly

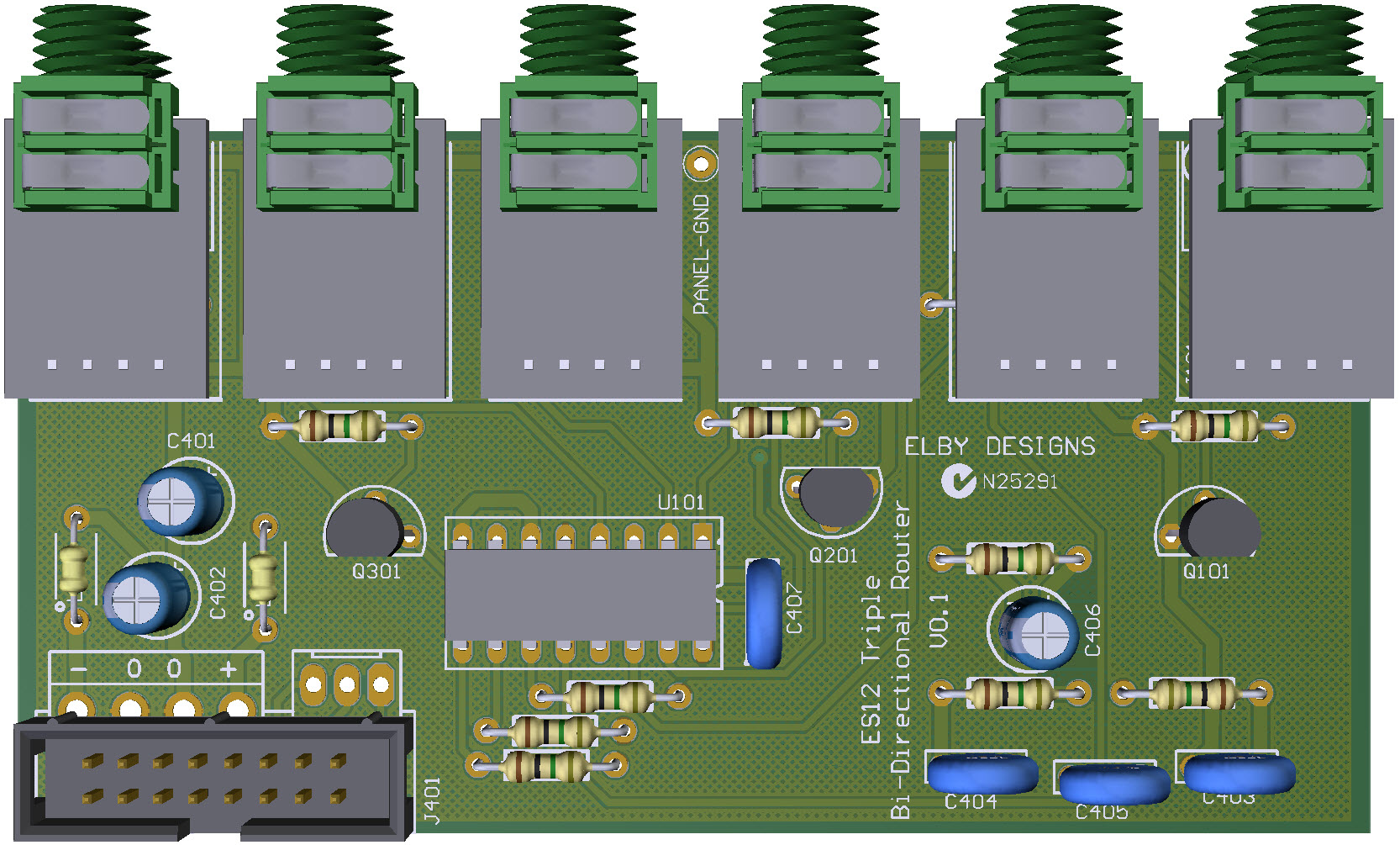

3D Model
Overlay
Plan View

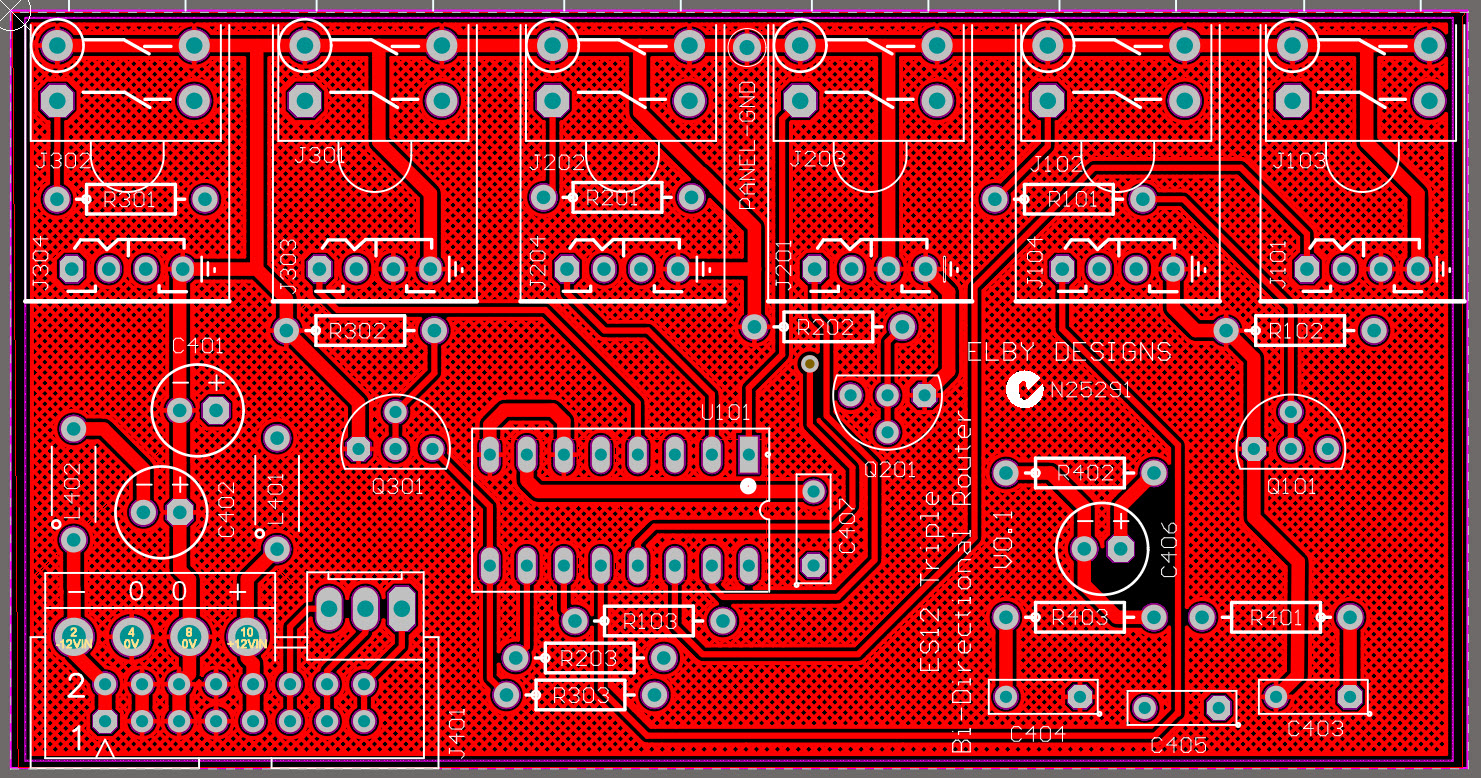

PCB

Constructors should refer to the Component Overlays along with,
the Bill of Materials for the current value of all components, and
the General Construction Notes for general PCB assembly guidelines.

  1. Assemble the 6x Jack Carrier boards
  2. Fit all components except for the sub-assemblies
  3. Mount the sub-assemblies on to the PCB but do not solder
  4. Offer the PCB assembly up to the front panel and secure using the supplied nuts
  5. Solder all the Jack Carrier sub-assemblies in to place

Back To Product Page

No Calibration Needed
