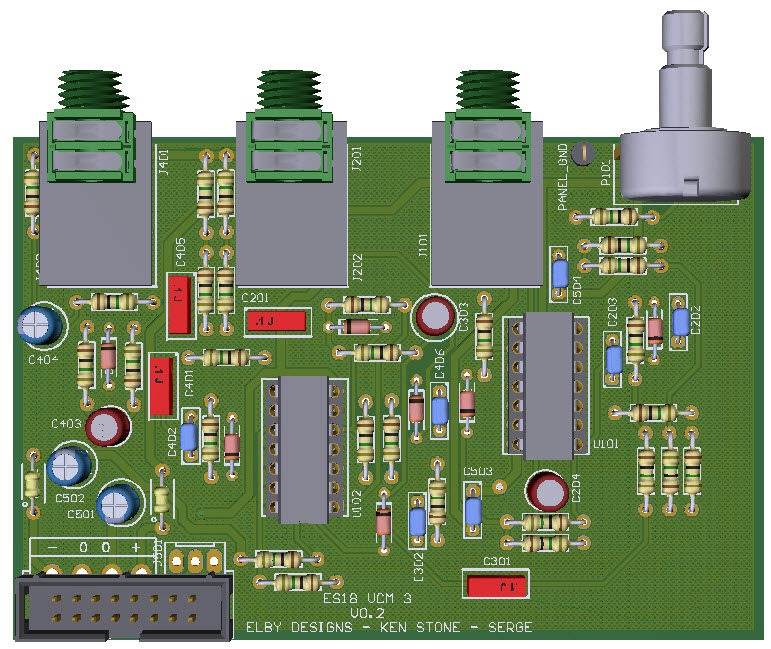

3D Model	Overlay	Plan View
PCB

Constructors should refer to the Component Overlays along with,
the Bill of Materials for the current value of all components, and
the General Construction Notes for general PCB assembly guidelines.

1. Assemble the 3x Jack Carrier boards
2. Fit all components to the main board except for the sub-assemblies

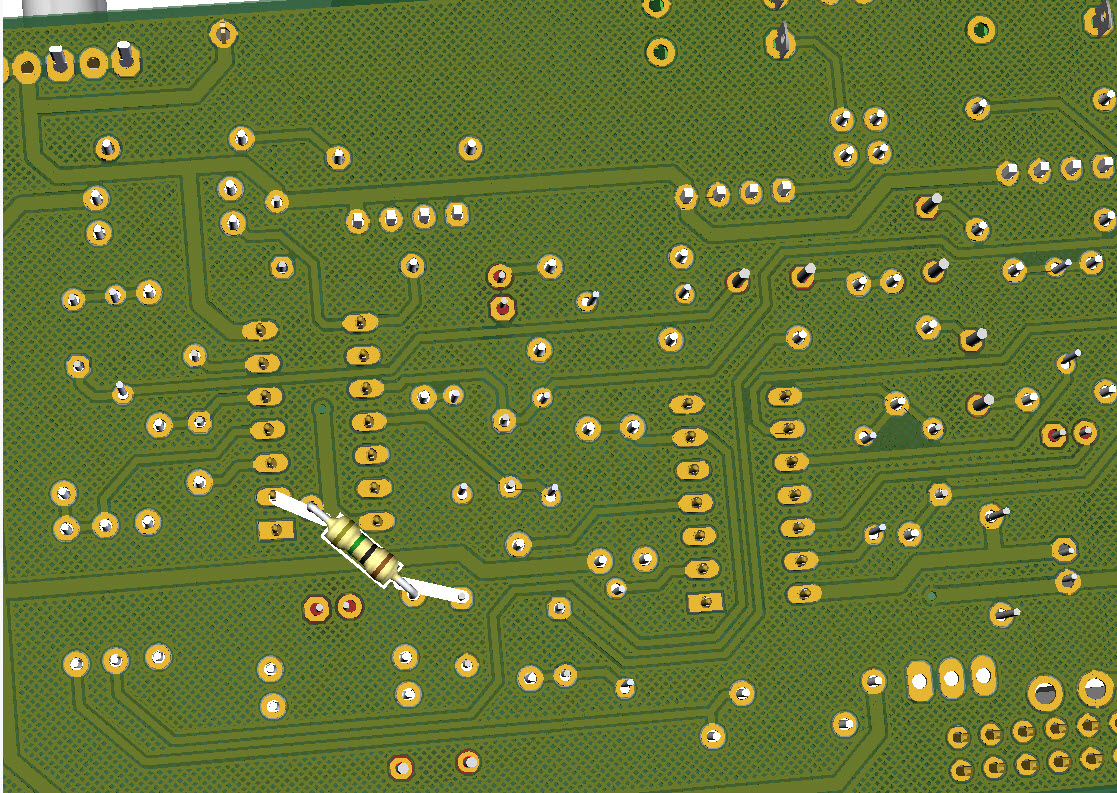

3. Mount R100 on the underside of the PCB across pins U101_2 and the top leg of C503
4. Mount the sub-assemblies on to the main board but do not solder
5. Offer the assembly up to the front panel and secure using the supplied nuts
6. Solder the sub-assemblies in to place
