3D Model |

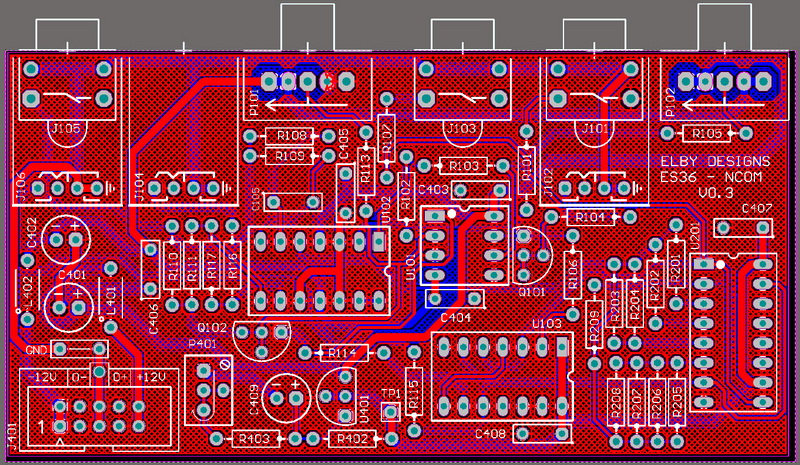

Overlay |
Plan View |
|
|
|
|
Constructors should refer to the Component Overlays along with,
the Bill of Materials for the current value of all components, and
the General Construction Notes for general PCB assembly guidelines.
- Assemble the 3x Jack Carrier Boards
- Fit all components to the PCB except for the Jack Carrier sub-assemblies
- Fit 3x Jack Carrier sub-assemblies to the main board but do not solder
- Offer the assembly up to the front panel and secure using the supplied nuts
- Solder the sub-assemblies in to place
