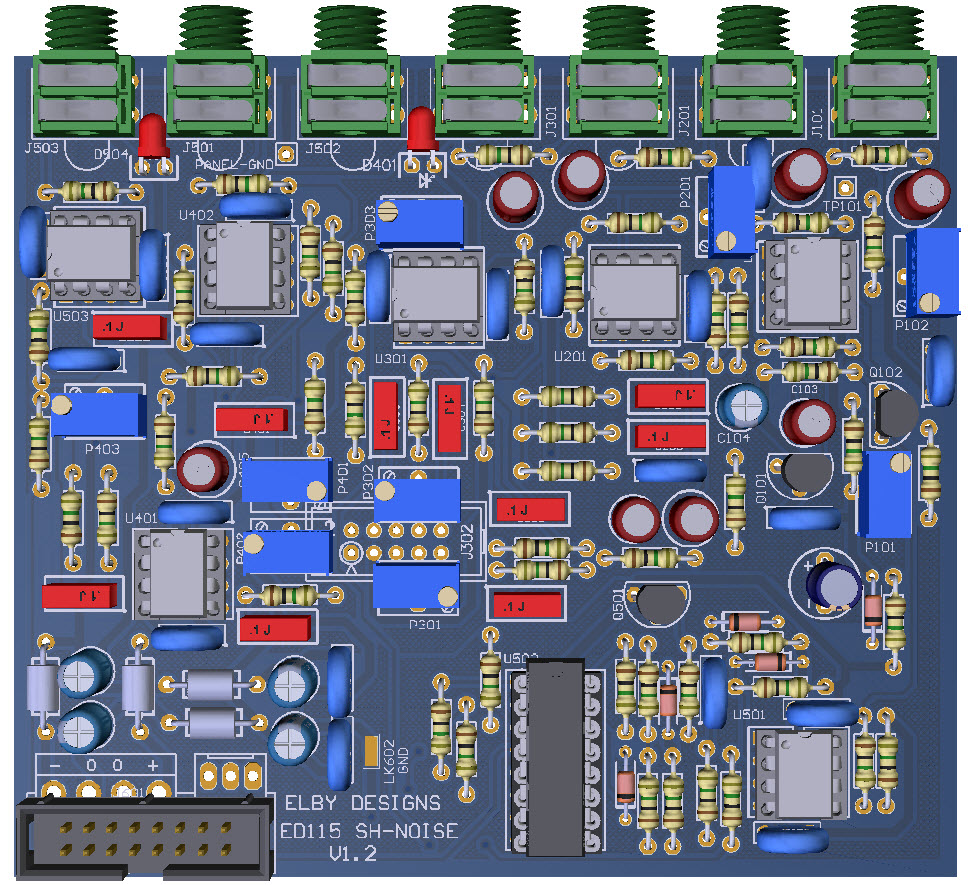

3D Model |
Overlay |
Plan View |
PCB |
|
|
|
Constructors should refer to the Component Overlays along with,
the Bill of Materials for the current value of all components, and
the General Construction Notes for general PCB assembly guidelines.
- Fit all components to the PCB except for the LEDs
- Mount the PCB to the front panel and secure using the supplied nuts
- Carefull form and install LEDs D401 and D504
- Solder in to place
