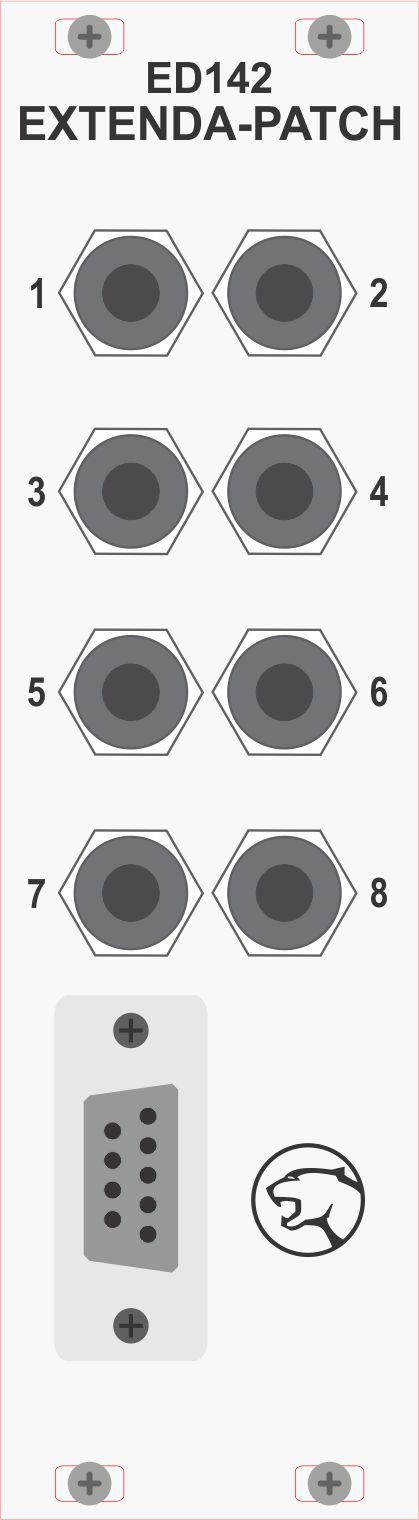

The ED142 will support up to 8 patch cables and can be supplied with either 3.5mm or 4mm jacks - which also makes it a useful tool for inter-patching between 3U and 4U format systems.

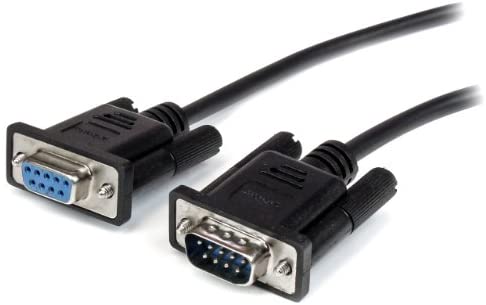

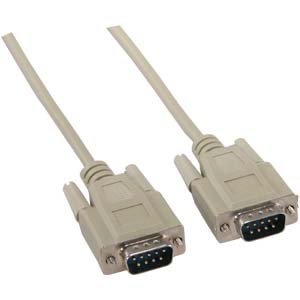

The inter-boat connection uses a standard DB9 (male-male) cable with a recommended length of 1m, Alternately we can supply the ED142 as a Male/Female pair to allow the use of DB9 Extension cables. In general, the ED142 can be used for all kind of signals: control voltages, audio and digital signals (like Clock, Gate, Start, Stop, Reset). The transmission performance and the cross-talk between signals will vary depending upon the length and the quality/shielding of the DB9 cable used.

It is recommended to separate audio signals from digital signals e.g. use 1x ED142 for for audio and CV signals, and another ED142 for digital signals especially when using longer DB9 cables.

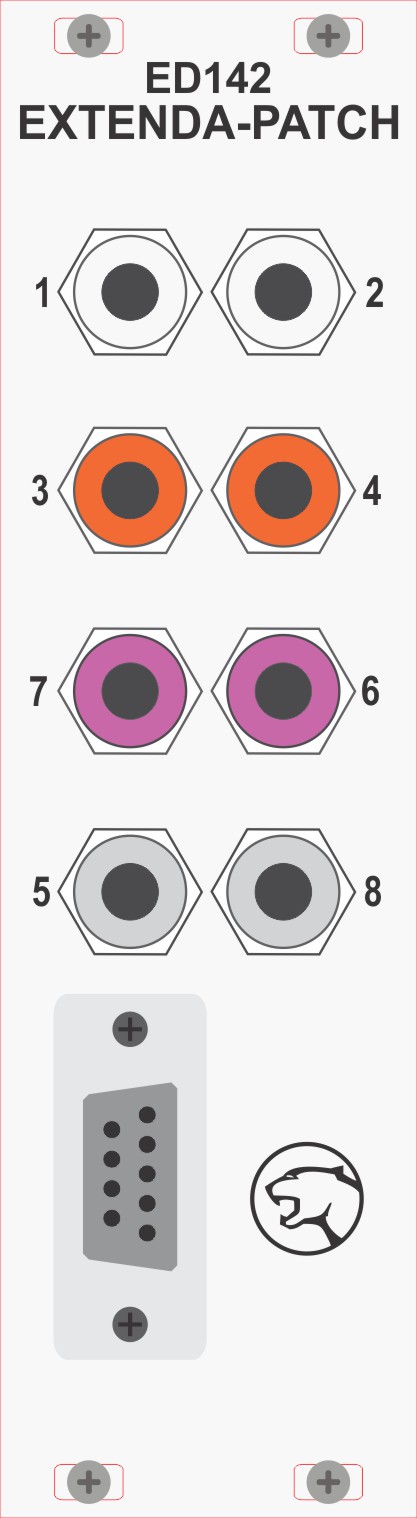

Alternately we can supply a Cat6a compliant RS232 cable that has 4-screened pairs and the module is then supplied with 4 coloured pairs of jacks indicating the screened pairs. You would then assign one or more pairs to LOGIC signals and other pairs to CV or AC and then patch them with appropiate signals.

The ED142 is fully passive and so does not need a power supply connection.We recommend that any installation is fully tested before final use as it is impossible to predict the interaction of components in advance - especially when using longer cables.

When patching CV signals for pitch control it may be necessary to add buffers such as the ED129 - CV Multiples.
