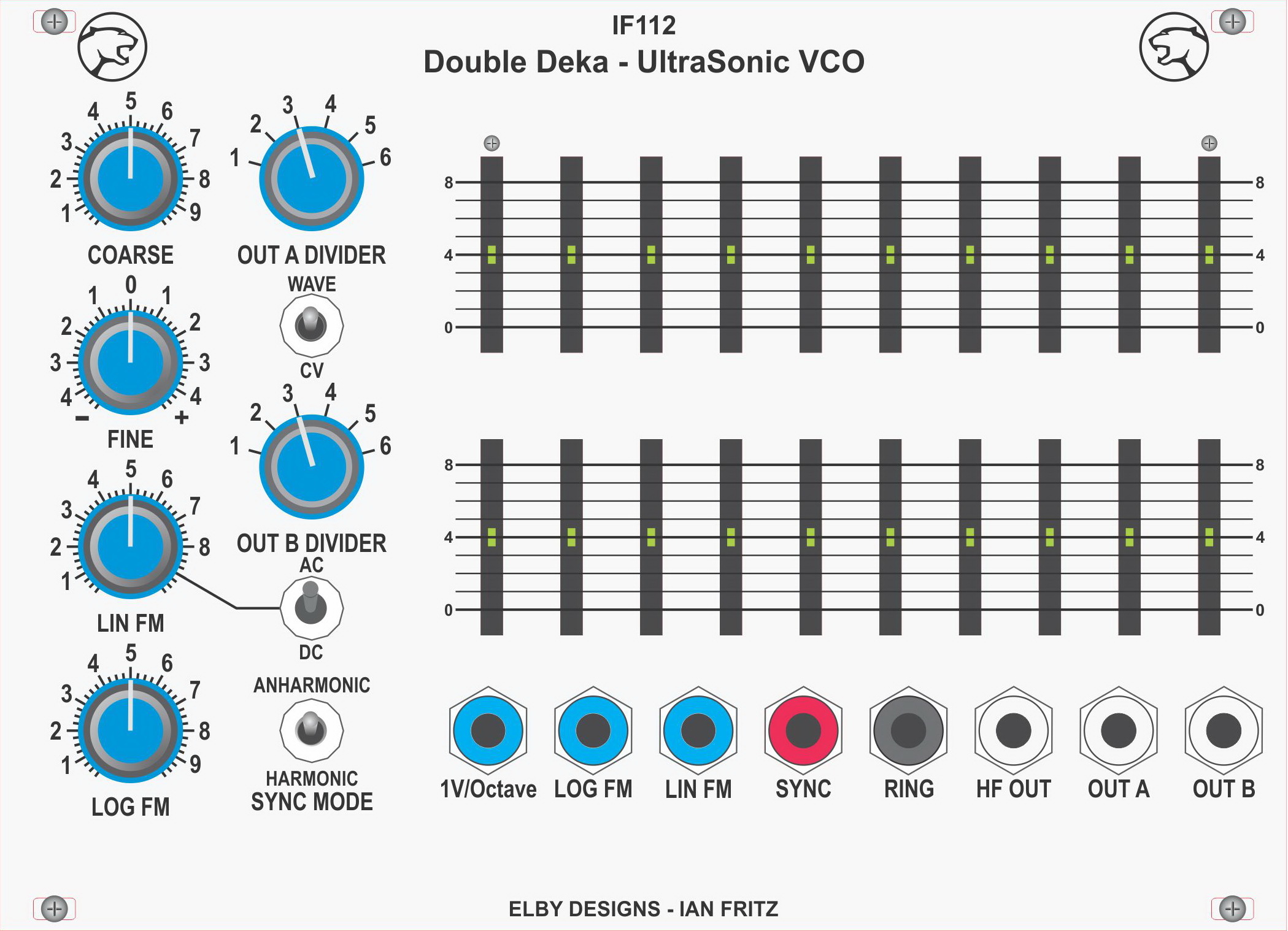

IF112 - Double Deka

DISCONTINUED

The IF112 is a stable, wide-range 1V/Octave VCO with incredible sonic versatility. Imagine 'drawing' a 10-stage waveform using lighted front panel sliders. Now imagine two of these waveforms, each with a precisely stepped 6-octave range control that can also be externally voltage controlled.

Add to this, two unique, new types of sync, a funky digital ring-modulator type input, plus separate linear and exponential FM inputs.



Module Width
30HP
Module Depth
58mm
+12V @
40mA
-12V @
30mA
Bill of Materials - 3.5mm
