3D Model |
Overlay |
PCB Plan View |

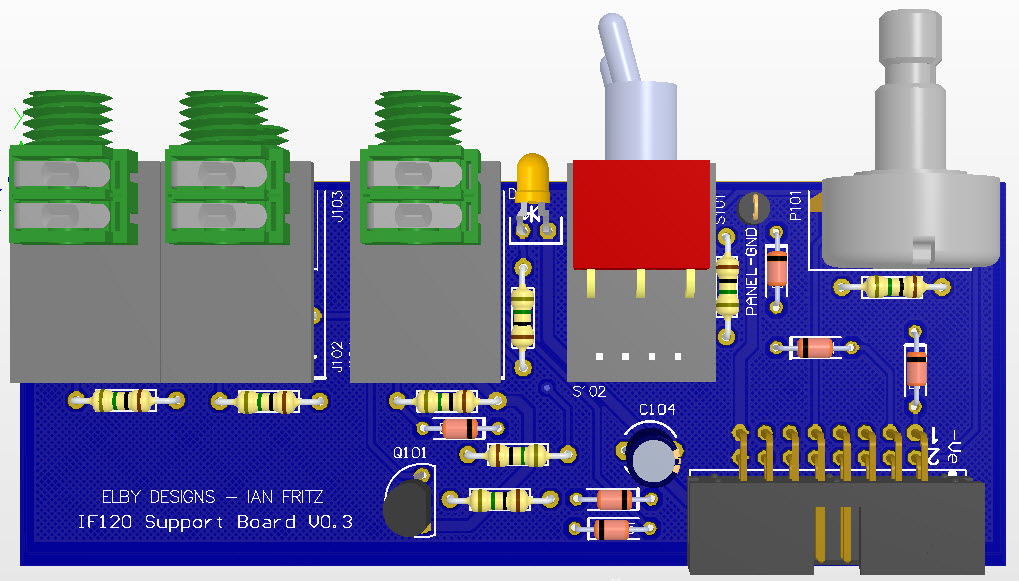

Support PCB |
|
|
|
Main PCB |
|
|
|
Constructors should refer to the Component Overlays along with,
the PCB Bill of Materials for the current value of all components, and
the General Construction Notes for general PCB assembly guidelines.
| Assembly Notes |
- Construct the Jack Carrier sub-assemblies (3D Model)
- Construct the Switch Carrier sub-assembly (3D Model)
- Fit all components to the main boards except for the Jack and Switch sub-assemblies and the LED
- Mount the 4x sub-assemblies to the Support PCB but do not solder
- Offer the Support PCB assembly up to the front panel and secure using the supplied nuts and washers
- Solder the sub-assemblies in to place
- Form the LED, mount it and solder in to place
- Install the remaining Support PCBs and secure using the supplied nuts and washers
- Install the Main PCB ensuring correct alignment of the IDC connectors
|
