Lite Racks provide a low-cost
construction method and allow
for really shallow skiffs
(minimum depth = 40mm) to be built. The
Lite Rack uses a simple Side
Plate to support the rails
at the correct module height
and adds only 5mm to the overall
rack width. Lite Racks can
be secured from within the
enclosure negating the need
for external bolt heads marring
the finish of your enclosure.
Lite
Side Plates are currently
offered in 2 straight/vertical heights of 3U and
6U and a variety of widths including 42HP, 84HP, 104HP, 126HP and 168HP. Custom widths to a maximum of 196HP are available on request. By combining multipe Side Plates you can get a variety of case shapes from straight to curved.
The images below show our Lite Racks in use.
3x 3U (*) |
2x 3U (*) |
3x 3U (*) |
2x 3U + 1x 1UX (*) |
* Bamboo case images courtesy of MasonMack Studios

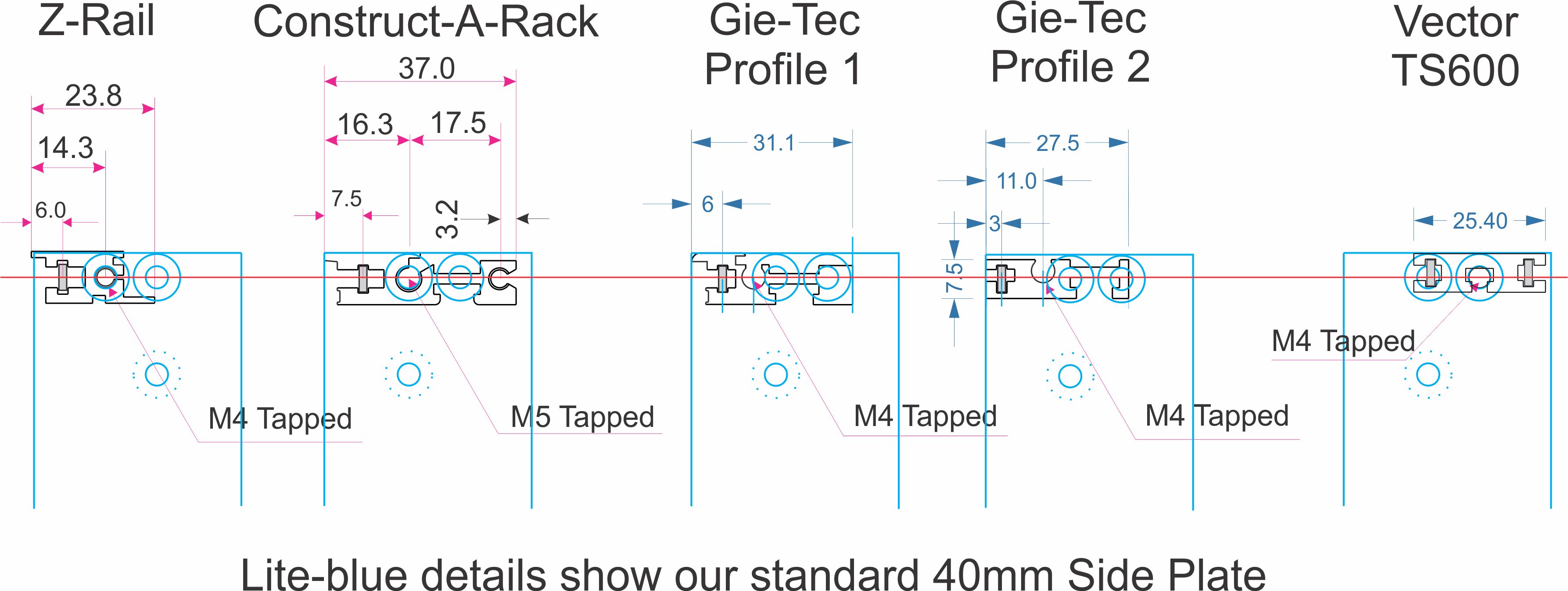

Please note that the dimensions and locations of the rail mounting holes on our Side Plates are optimised for use with our own rails. This chart compares several other brand rails. It can be seen that with most of them that they will not work on our Side Plates.
|
