General Construction Notes

Component PCB Footprints (3)

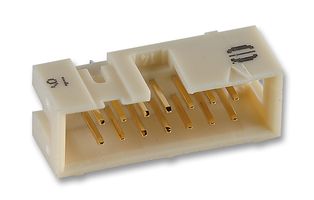

IDC Header
Vertical

Note polarisation notch and/or mark
IDC Header
Right-angle
Note polarisation notch and/or mark
IDC Power Header
16-pin
Note polarisation notch and/or mark
IDC Power Header
10-pin
Note polarisation notch and/or mark
MTA Header

2-pin thru to 12-pin

Note polarisation mark

Faston Quick Connect

IC Socket
6-pin through to 40-pin
Screw Terminal Connector
IDC Receptacle
Header Pins
Pin 1 is marked
Header Receptacles

Pin 1 is marked
Header Shunts

Stripline Headers

Stripline Sockets
Pin 1 is marked
