The MIDI LINK is a standalone Interface Unit
that lets you control your WASP, GNAT or any other EDP LINK compatible
device from any suitable MIDI controller such as a PC, MIDI
Keyboard or MIDI Sequencer.
It is fitted with a MIDI-IN and MIDI-THRU socket and has a LINK socket which can be connected to any EDP LINK compatible instrument.
The unit uses your instruments existing power supply to provide power for the MIDI LINK and incorporates a feed-through socket to reconnect power to your instrument.
The unit is supplied with a 50cm DC-DC Cable (terminated with 3.5mm Jack plugs) and a 50cm LINK Cable.

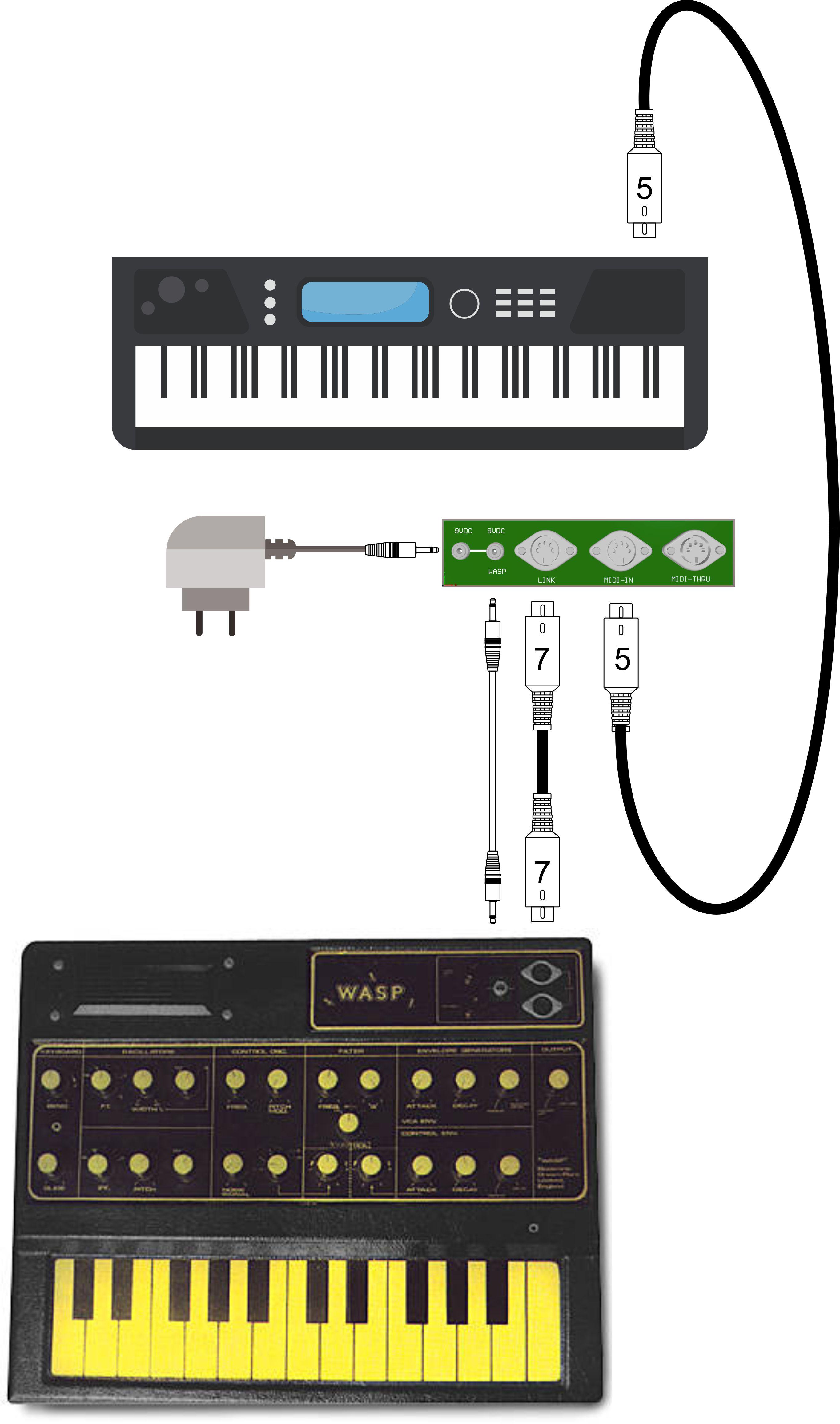

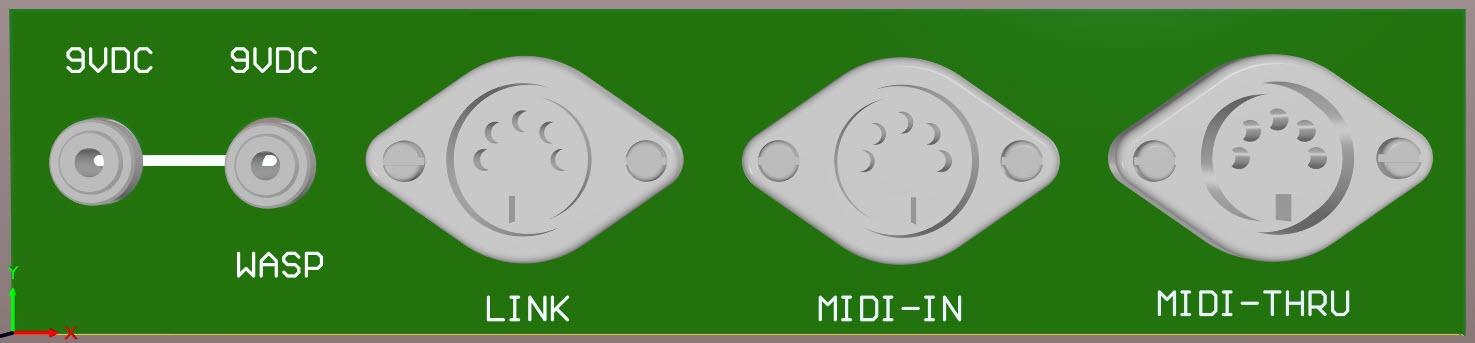

- Connect your original WASP Power supply to the far left DC socket marked [9VDC] NB: Tip = 9V and Screen = 0V.
- Fit the DC-DC cable between the DC socket marked [9VDC - WASP] and your WASP (Or any other LINK controlled device)
- Connect the LINK cable between the socket marked [LINK] and the LINK socket on the WASP
- Connect your MIDI Controller to the socket marked [MIDI-IN]
|
|
|
