Monitor TP1 (On PCB V0.2 there is an exposed pad on P103)
-
Adjust P103 for 10.0V
-
Set panel controls, [DECAY] and [RELEASE] to minimum, [ATTACK] to '2' and [SUSTAIN] to maximum
-
Set P106 to its mid-position
-
Monitor the [ADSR] output
-
Use the [MANUAL] button to generate an envelope
-

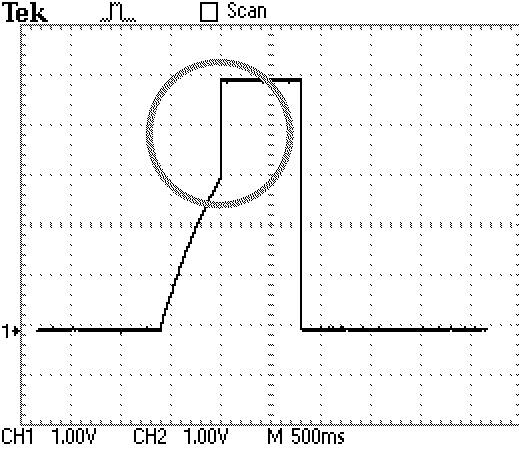

The envelope will appear somewhat similar to that in Figure 1 where it has a step in the rising edge (area in circle)
-
Turn P106 clockwise 1-turn
-

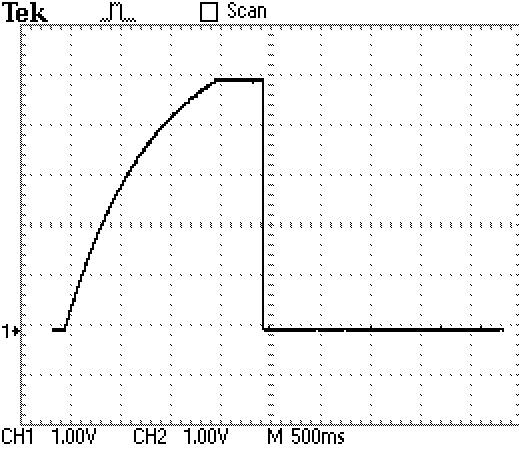

Repeat steps (6) through to (8) until the step is removed as shown in Figure 2
