3D Model |
Overlay |
Plan View |
Column 1 PCB |
|
|
|

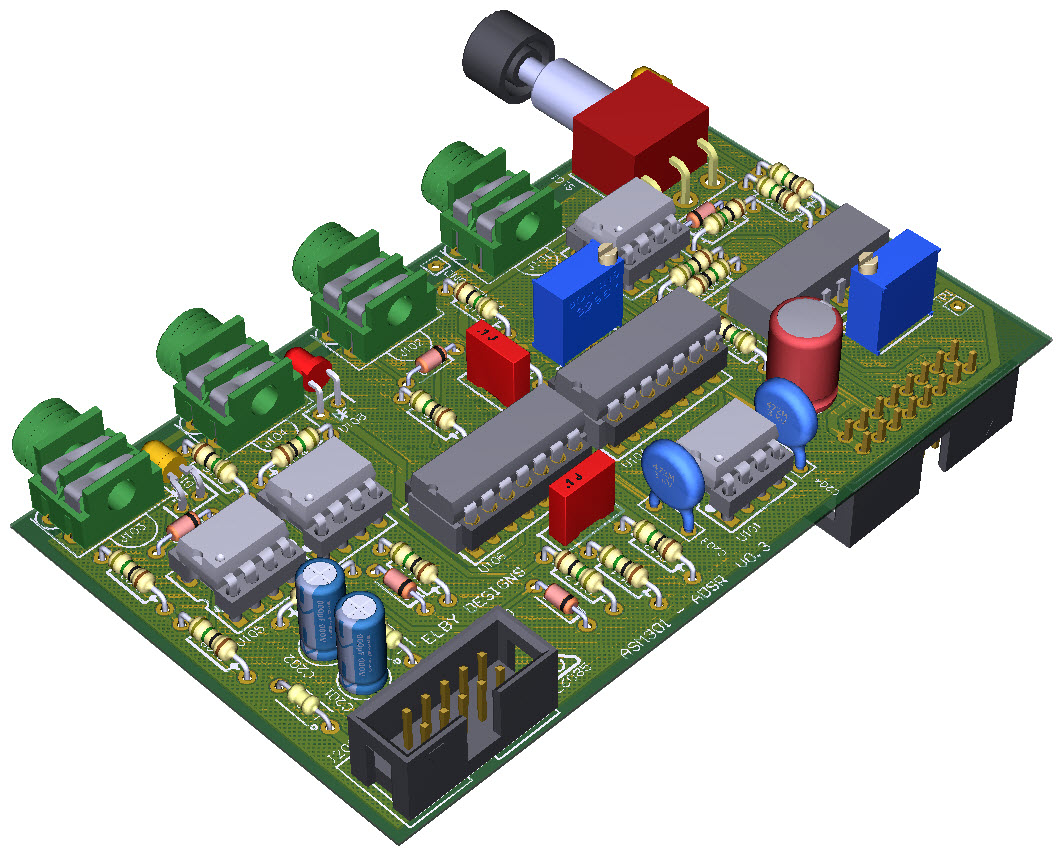

ASM301 PCB |
|
|
|
Constructors should refer to the Component Overlays along with,
the Bill of Materials for the current value of all components, and
the General Construction Notes for general PCB assembly guidelines.
- Fit all components to the boards except D104, D105 and D108
- Mount the ASM301 assembly to the front panel and secure using the supplied nuts
- Form the legs for the 3 LEDs and mount and solder in to place
- Mount the Column 1 assembly and secure using the supplied nuts and washers
