3D Model	Overlay	Plan View
Column 1 PCB

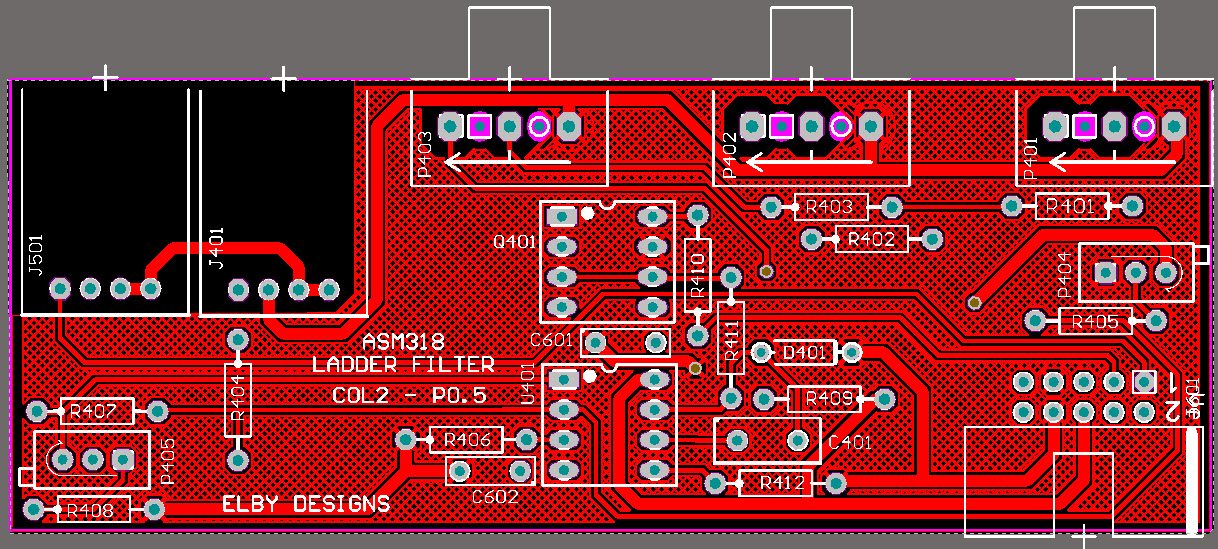

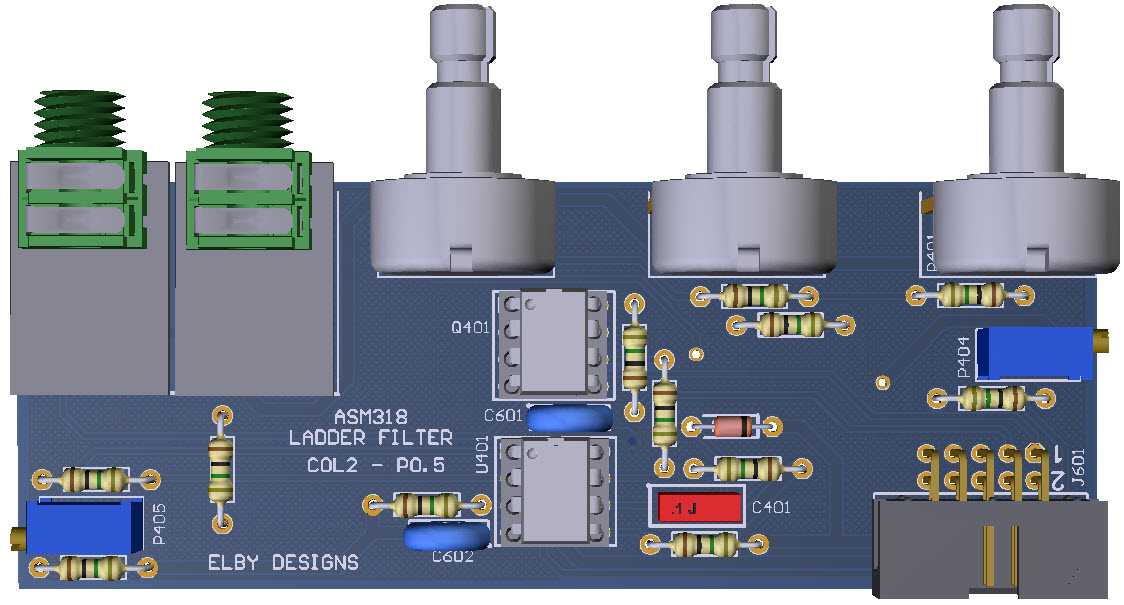

Column 2 PCB

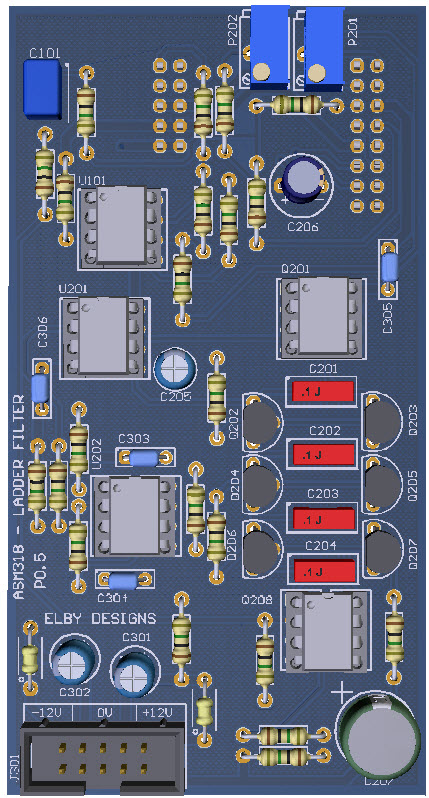

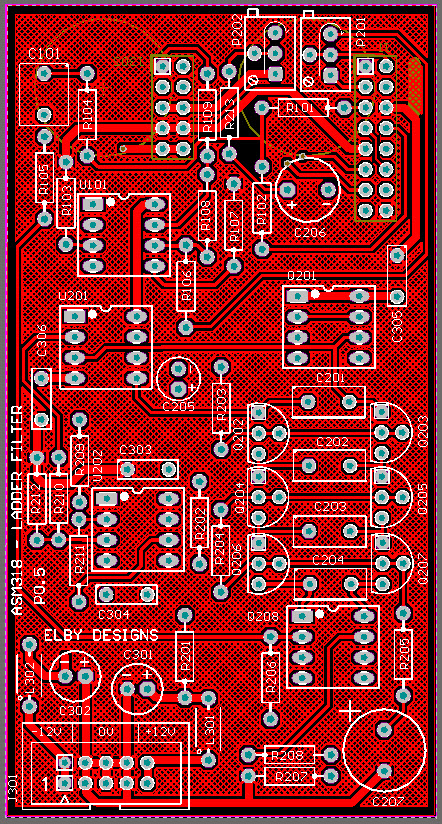

ASM318 PCB

Constructors should refer to the Component Overlays along with,
the Bill of Materials for the current value of all components, and
the General Construction Notes for general PCB assembly guidelines.

1. Assemble 4x Jack Carrier PCBs
2. Populate the 2 column PCBs with all parts except for the Jack Carrier sub-assemblies
3. Mount the 2x Jack Carrier sub-assemblies on the Column 1 PCB but do not solder
4. Offer the asembly up to the front panel and secure using the supplied nuts and washers
5. Mount the 2x Jack Carrier sub-assemblis onthe Column 2 PCB but do not solder
6. Solder the Jack Carrier sub-assemblies in to position
7. Offer the assembly up to the front panel and secure using the supplied nuts and washers
8. Solder the Jack Carrier sub-assemblies in to position
9. Populate the Main PCB
10. Mount the Main PCB on to the panel assembly ensuring correct location of the IDC connectors
