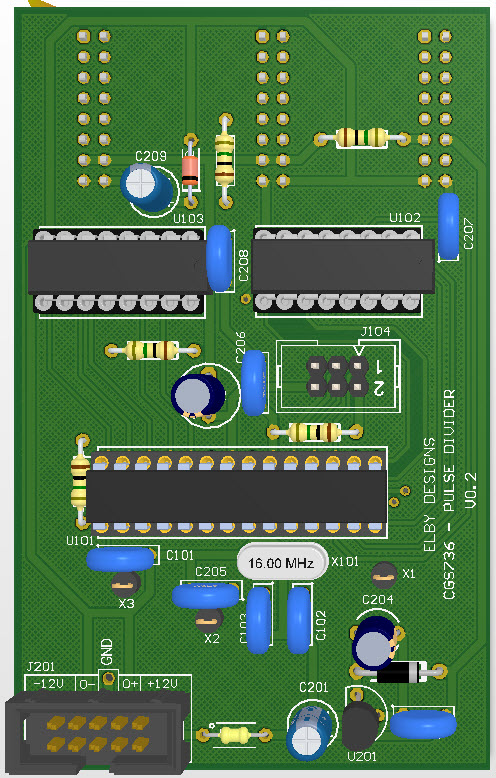

Main

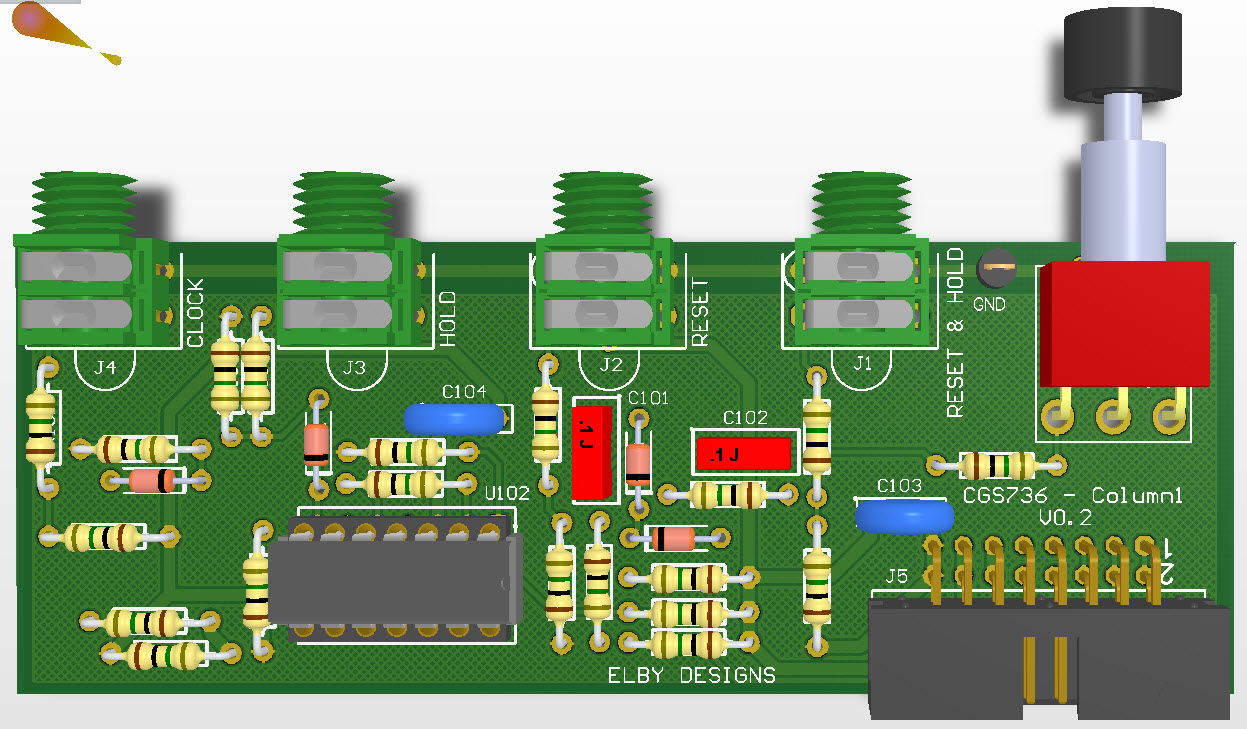

Column 1

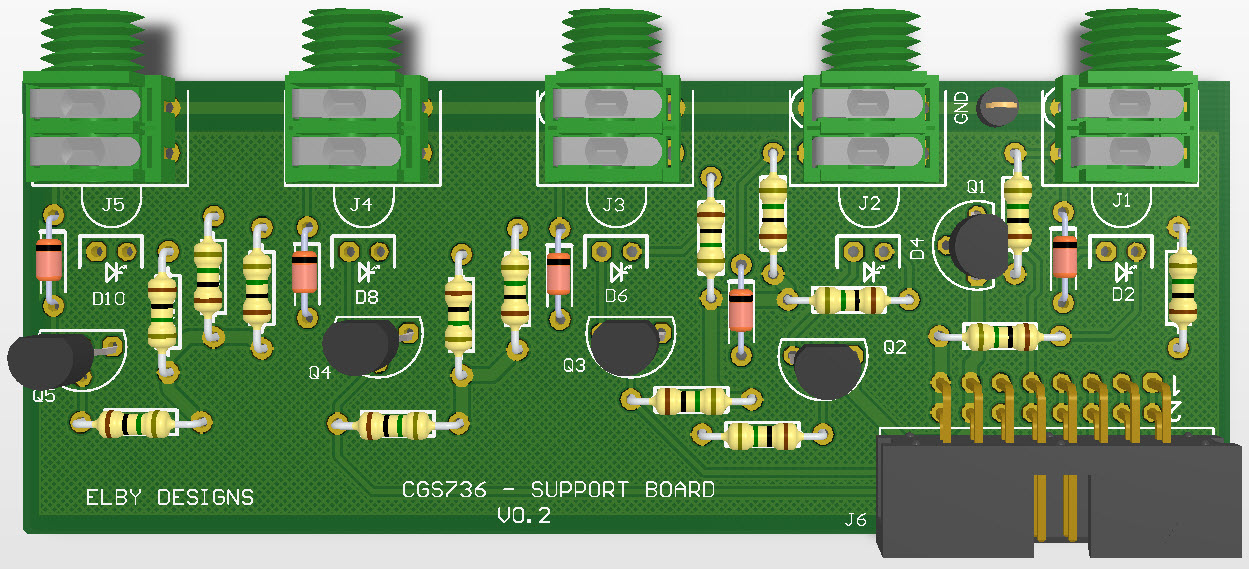

Column 2 & 3

Constructors should refer to the Component Overlays along with,
the Bill of Materials for the current value of all components, and
the General Construction Notes for general PCB assembly guidelines.

1. Prepare the 10x LEDs as per our General Construction Notes
2. Fit all components to the 4 PCBs except for the switch S1 and 10x LED assemblies
3. Fit 10x lens mounts to the Front Panel
4. Mount the Column 2 PCB assembly
5. Fit each of the 5x LEDs following the PCB footprint
6. Remove the Column 2 PCB assembly and repeat step (5) for the Column 3 PCB assembly
7. Remove the Column 3 PCB assembly
8. Mount S1 to the Column 1 PCB but do not solder
9. Offer the assembly up to the Front Panel and secure the jacks using the supplied nuts
10. Secure the switch using its supplied nut ensuring the body of the switch is parallel to the edge of the panel
11. Solder the switch
12. Mount the remaining 2x PCB assemblies using the supplied nuts
13. Mount the Main PCB ensuring that the IDC headers are correctly aligned.
