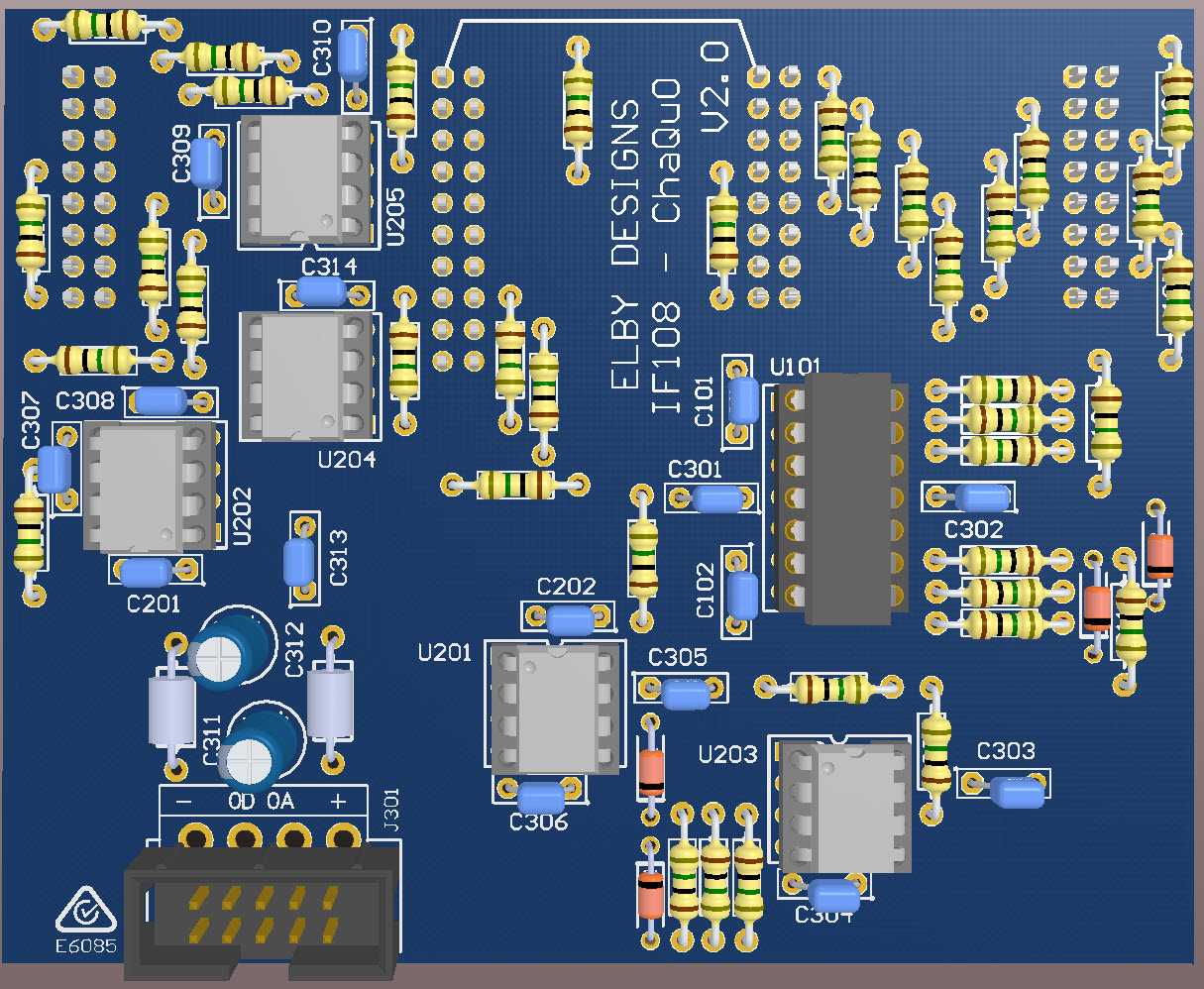

3D Model	Overlay	Plan View
Column 1 PCB
Column 2 PCB
Column 3 PCB
Column 4 PCB
Back PCB

Constructors should refer to the Component Overlays along with,
the Bill of Materials for the current value of all components, and
the General Construction Notes for general PCB assembly guidelines.

1. Assemble the 4x Jack Carrier Board assemblies (3D Model)

2. Assemble the 1x Switch Carrier Board assembly (3D Model)

3. Fit all components to the boards following normal assembly guidelines except for all the jack sub-assemblies

4. Mount the 3x jack sub-assemblies to the Column 2 board but do not solder

5. Offer the assembly up to the front panel and secure the using the supplied nuts and washers

6. Solder the jack sub-assemblies in to place

7. Mount 1x jack sub-assembly and 1x switch sub-assembly to the Column 3 board but do not solder

8. Offer the assembly up to the front panel and secure using the supplied nuts and washers

9. Solder the sub-assemblies in to place

10. Install the Backboard ensuring the correct alignment of the IDC connectors

ADDENDUM

A PCB error on the main PCB requires that a wire link be fitted between J102_1 and J202_1 as shown on the PCB Overlay
