EuroSerge Expanding Systems

These systems chart the expansion from a single-voice Serge system through to an idealised EuroSerge System with multi-voice patching capabilities.
Each system is presented here in an optimum sized case for that configuration.
If you intend to follow through to the full Classic Plus then you need to start with a 12U 168HP or similar capacity case.

ESS1 - Teaser

This system is designed to introduce the new user to the Serge concept of Patch Programmability.
Patch Programmability allows for multiple functions from a single module depending on how the module is patched.

The Teaser Serge intentionally leaves out traditional modules such as VCOs, VCFs and VCAs
but it is still an amazingly powerful grouping of modules because of Patch Programmability.

For instance, in The Teaser Serge there are:-
4 modules that can be used as VCOs,
2 modules that can be used as VCFs,
2 modules that can be used as VCAs,
2 modules that can perform frequency division,
3 modules that can provide portamento,
4 modules that can be used as LFOs,
3 modules can provide traditional envelopes.

More selected functions that Patch Programmability provides in this system are S/H, random voltages, zero crossing detection and envelope following.

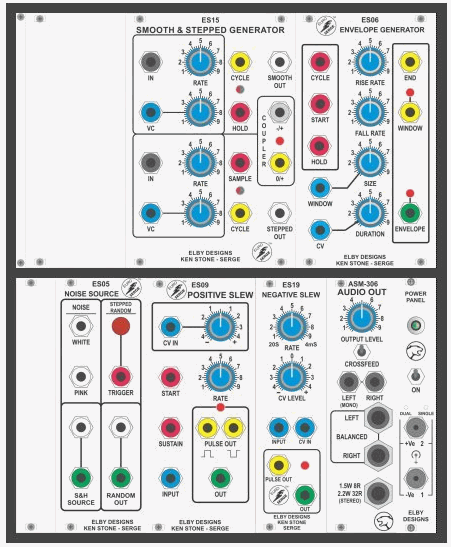

ES05	Noise Source	1
ES06	Envelope Generator	1
ES09	Positive Slew	1
ES19	Negative Slew	1
ES15	Smooth & Stepped Generator	1
ASM306	Audio Out	1

Module Space Required: 64HP

System Enclosure(*)
Studio 500 - 6U 42HP

Teaser

(*) These are the recommended minimum size enclosures and are offered from our Studio Series of enclosures.
Larger enclosures should be considered if you wish to cater for future expansion.
Please email us if you wish to look at alternate enclosure solution or configurations
