These systems chart the expansion from a single-voice Serge system through to an idealised EuroSerge System with multi-voice patching capabilities.
Each system is presented here in an optimum sized case for that configuration.
If you intend to follow through to the full Classic Plus then you need to start with a 12U 168HP or similar capacity case.

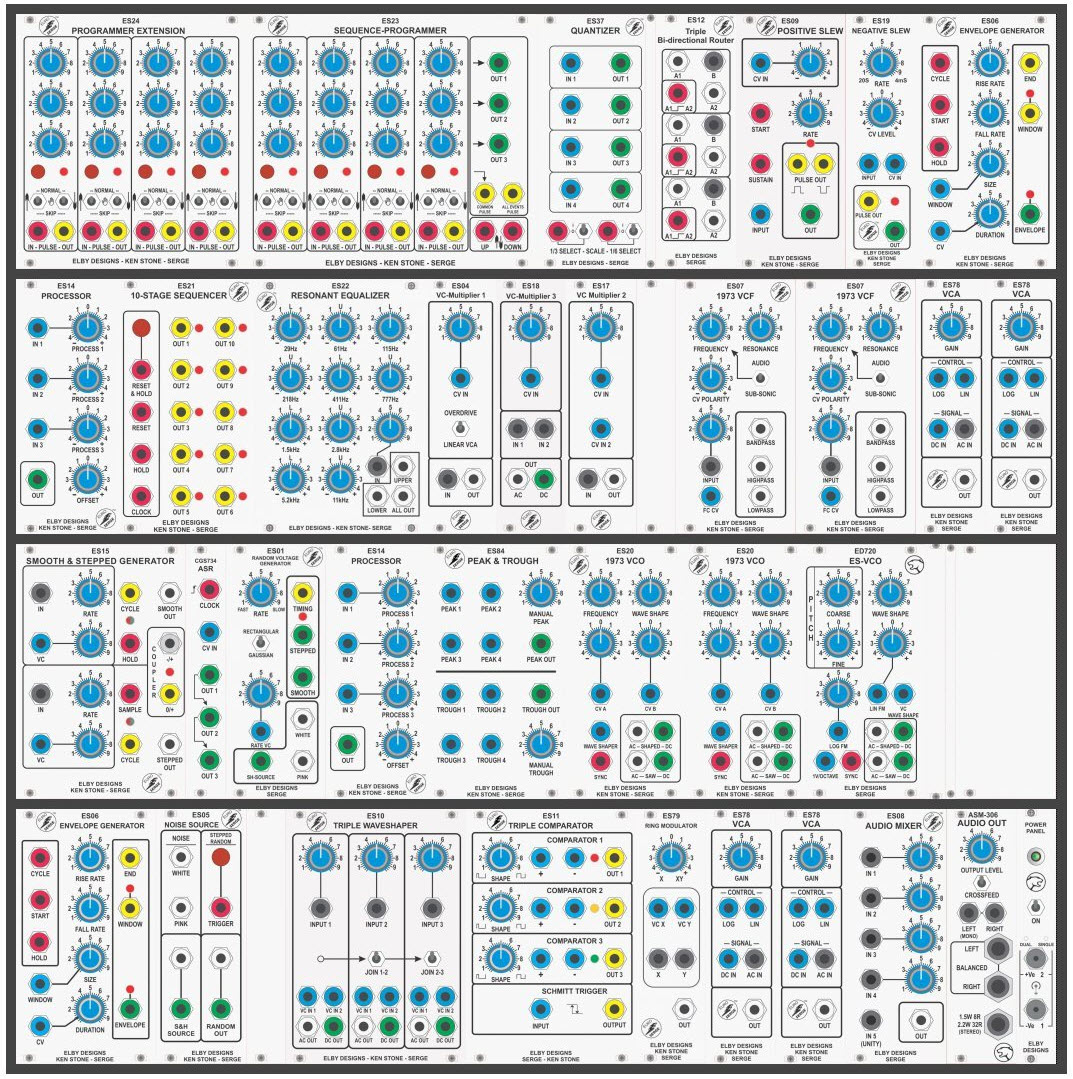

The Intermediate Serge #2
Continue the dive with even more sequencing and a full 3-voice environment
|
![](ess5.jpg)
![](../../../images/logo-modulargrid.jpg)
|
|
Random Voltage Generator |
1 |
|
VCM1 |
1 |
|
Noise Source |
1 |
|
Envelope Generator |
2 |
|
1973 VCF |
2 |
|
4in/1out Audio Mixer |
1 |
|
Positive Slew |
1 |
|
Triple Wave Shaper |
1 |
|
Triple Comparator & Schmitt Trigger |
1 |
|
Triple Bi-Directional Router |
1 |
|
Voltage Processor |
2 |
|
Smooth & Stepped Generator |
1 |
|
VCM2 |
1 |
|
VCM3 |
1 |
|
Negative Slew |
1 |
|
1973 VCO |
3 |
|
10-Step Sequencer |
1 |
|
Resonant Equalizer |
1 |
|
Sequencer-Programmer |
1 |
|
4-Stage Programmer Extension |
1 |
|
VCA |
4 |
|
Ring Modulator |
1 |
|
Peak & Trough |
1 |
|
Analog Shift Register |
1 |
|
Audio Out |
1 |
|
Xpander |
5 |
Module Space Required: 396HP
System Enclosure(*)
12U 104HP
![](../../../subrack/studio_series/studio-12u-configuration.jpg)
|
(*) These are the recommended minimum size enclosures and are offered from our Studio Series of enclosures.
Larger enclosures should be considered if you wish to cater for future expansion.
Please email us if you wish to look at alternate enclosure solution or configurations
