The EuroSerge Expanding System

These systems chart the expansion from a single-voice Serge system through to an idealised EuroSerge System with multi-voice patching capabilities.
Each system is presented here in an optimum sized case for that configuration.
If you intend to follow through to the full Classic Plus then you need to start with a 12U 168HP or similar capacity case.

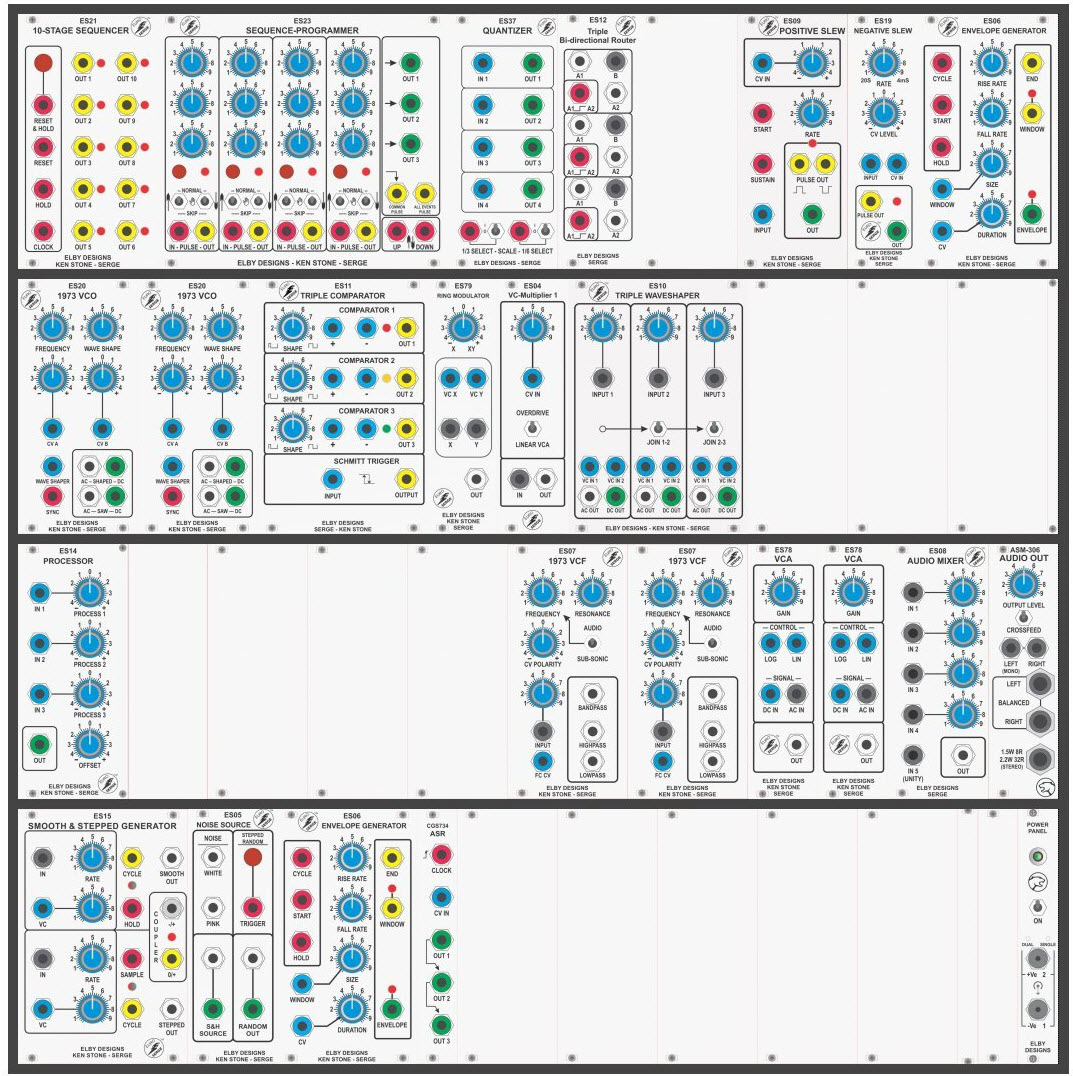

ESS4 - Intermediate 1 Although they are still too small to hold a complete selection of EuroSerge modules, the Intermediate configurations delve deep into the full Serge design concept including sequencing and non-subtractive signal processing.

ES04 VCM1 1 ES05 Noise Source 1 ES06 Envelope Generator 2 ES07 1973 VCF 2 ES08 4in/1out Audio Mixer 1 ES09 Positive Slew 1 ES10 Triple Wave Shaper 1 ES11 Triple Comparator & Schmitt Trigger 1 ES12 Triple Bi-Directional Router 1 ES14 Voltage Processor 1 ES15 Smooth & Stepped Generator 1 ES19 Negative Slew 1 ES20 1973 VCO 2 ES21 10-Step Sequencer 1 ES23 Sequencer-Programmer 1 ES78 VCA 2 ES79 Ring Modulator 1 ASM306 Audio Out 1 ASM324 Xpander 3 CGS734 Analog Shift Register 1 Module Space Required: 262HP System Enclosure(*) 12U 104HP
