EuroSerge Expanding Systems

These systems chart the expansion from a single-voice Serge system through to an idealised EuroSerge System with multi-voice patching capabilities.
Each system is presented here in an optimum sized case for that configuration.
If you intend to follow through to the full Classic Plus then you need to start with a 12U 168HP or similar capacity case.

The Beginner Serge

The Beginner Serge forms an entry level EuroSerge configuration and is a fully effective,
single-voice Serge and allows plenty of modulation opportunities and inter-patching control.

This is the system that Doug is currently using in his Patch Of The Week videos.

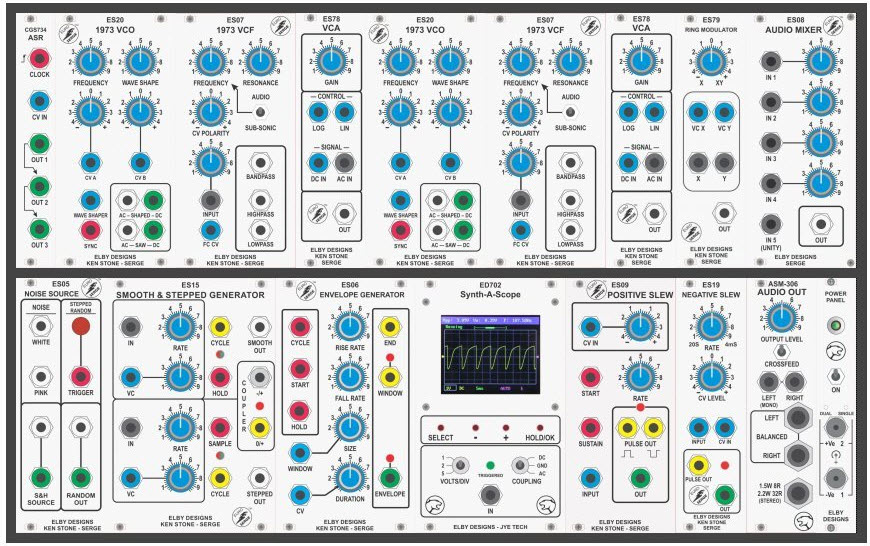

Row 1: CGS734, ES20, ES07, ES78, ES20, ES07, ES78, ES79, ES08

Row 2: ES05, ES15, ES06, ED702, ES09, ES19, ASM306, Power Panel

ES05	Noise Source	1
ES06	Envelope Generator	1
ES07	1973 VCF	1
ES08	Audio Mixer	1
ES09	Positive Slew	1
ES15	Smooth & Stepped Generator	1
ES19	Negative Slew	1
ES20	1973 VCO	2
ES78	VCA	2
ES79	Ring Modulator	1
ASM306	Audio Out	1
CGS734	ASR	1
ED702	Synth-A-Scope	1

Module Space Required: 121HP

System Enclosure(*)
Studio 700 - 6U 84HP

Patch Sheet (.PDF)

Patch of The Week (68MB)

(*) These are the recommended minimum size enclosures and are offered from our Studio Series of enclosures.
Larger enclosures should be considered if you wish to cater for future expansion.
Please email us if you wish to look at alternate enclosure solution or configurations
